Used oil evacuation, storage and transfer is safer, cleaner and faster with a pump-assist system from JohnDow Industries.

Ideal for new car dealers, tire and automotive service stores and dealers, heavy-duty fleet owners and operators and municipal garages.

Features include:

  • UL Listed double-wall tank provides 110% secondary containment
  • Meets UL 142 specifications as well as the requirements of Uniform Fire Code and NFPA 30
  • Workbench style tanks in 180-, 285-, and 500-gallon capacities
  • Vertical-style for space saving is available in a 245-gallon capacity
  • UL Listed, 1″ air-operated diaphragm pump has a 30 gpm capacity

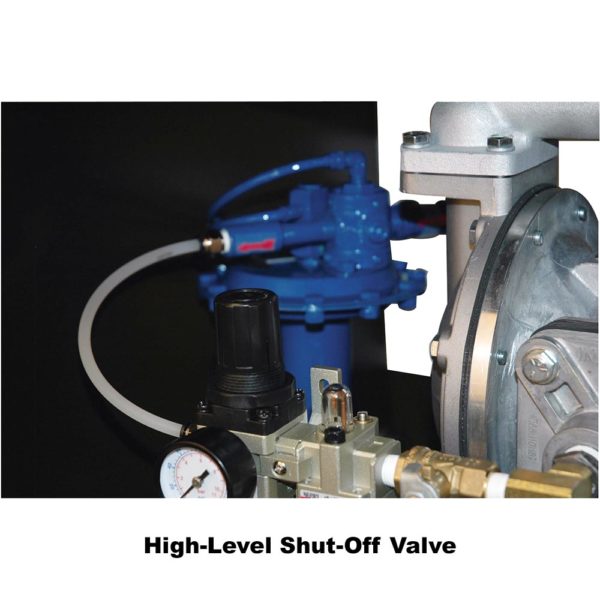

  • Automatic pump shut-off to prevent overfilling
  • 3/4″ x 10′ suction hose with quick-connect coupler
  • 2″ drop tube with camlock fitting and dust cover
  • Air filter/regulator
  • Easy-to-read level gauge
  • High gloss enamel finish
  • Protective cover for pump and shut-off valve



Specifications:

Model No. Style Capacity (Gal) Dimensions (LxWxH) Weight
AGS-180D Workbench 180 56″ x 28″ x 40″ 725 lbs.
AGS-245D Vertical 245 40″ x 37-1/2″ x 69″ 1100 lbs.
AGS-285D Workbench 285 67″ x 31″ x 42″ 1100 lbs.
AGS-500D Workbench 500 82″ x 49″ x 40″ 1300 lbs.



For more detailed information, see the PDFs below or review our Full Catalog for more equipment options.
