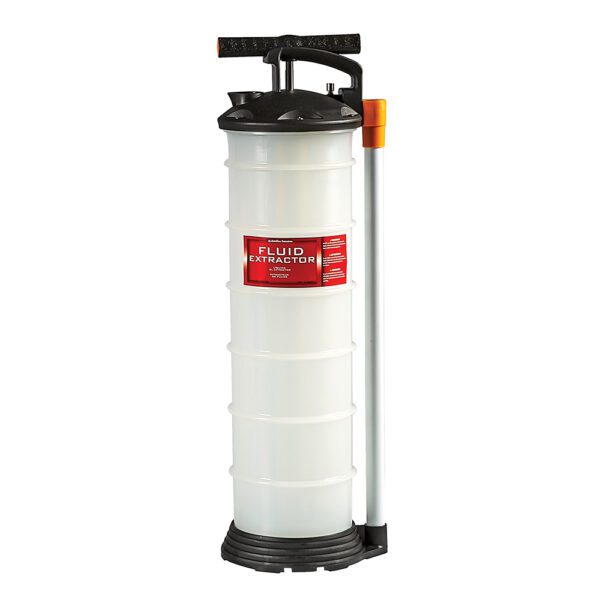

JDI-172EV Vacuum Fluid Extractor – Manual Pump

Related Videos

No related documents.

This manual pump activated vacuum extractor efficiently removes a variety of fluids from reservoirs on all types of vehicles and equipment.  The manual pump vacuum operation eliminates the need for compressed air making it very portable and versatile.  Fluids are extracted through filler ports and dipstick tubes using the included extractor tubes.

Features include:

  • 1.7 gal. (6.5l) reservoir
  • Hand pump activated vacuum operation
  • Heavy-duty polyethylene construction
  • Chemical resistant
  • Convenient carry handle
  • Extractor tube holder’
  • Sliding foot pedal for stability
  • Automatic stop to prevent overfill
  • Replacement tube set available (No. CJ-006)
  • Full color retail package

Extractor tubes included:

  • .23 in. OD x 2.9 ft. long (Dipstick tube) (5.8mm x .85 m)
  • .26 in. OD x 2,9ft long (Dipstick tube) (6.7mm x .85m)
  • .39 in OD x 3.2 ft. long (Main extraction tube) (9.8mm OD x 1m)

Specifications:

Reservoir capacity:……………. 1.7 gal (6.5l)

Max operating temp:…………… 212°F (100°C)

Weight:……………………………. 6.6 lbs. (3.0 kgs.)

Size (packaged):……………….. 25.7”x7.0”x7.0”
